Depth Control System

DCS Data Sheet

Click icon to view

The days of manually adjusting cut depth are over. SMITH’s electronic depth control system raises and lowers your cutter with the push of a button. Operators can quickly and precisely adjust cut depth in 0.01 inch increments, enabling them to achieve a consistent cut depth on uneven surfaces – without stopping production.

The DCS is ideal for pavement and flooring applications where precise removal is critical to a successful job:

• Grooving for inlayed traffic markings
• Leveling floors
• Removing traffic markings
• Removing epoxy coatings
• and much more!

DCS Performance Benefits

Eliminate Measuring and Guesswork

  • Adjust cut depth in 0.01 inch increments
  • Easily align with uneven surfaces
  • Eliminate damage due to dropped drums
  • Achieve consistent cut depth

Ultimate Control and Flexibility

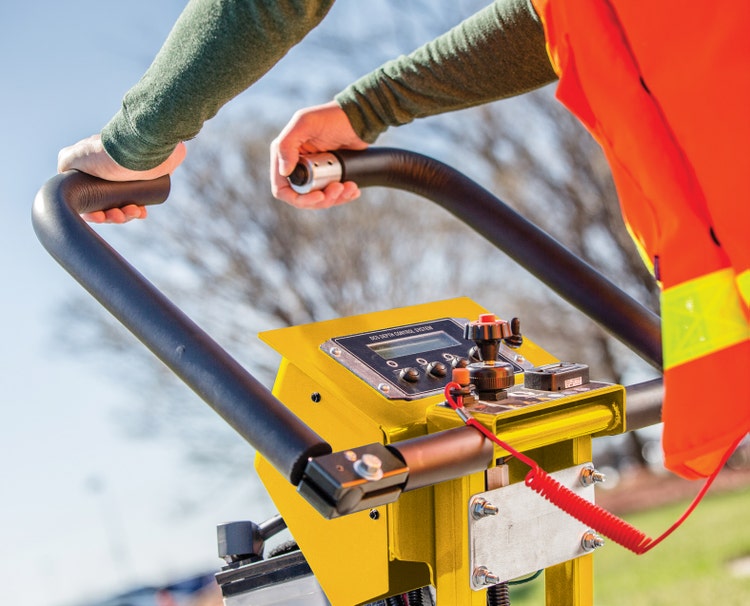

  • Easy adjustment via control panel and handlebar controls
  • Set zero point where cutter meets surface
  • Displays active depth from zero point
  • Imperial and metric adjustments

Durable, Maintenance-Free Design

  • Aluminum control enclosure holds up to harsh environments
  • Electronic components are 100% encapsulated to protect against vibration and weather

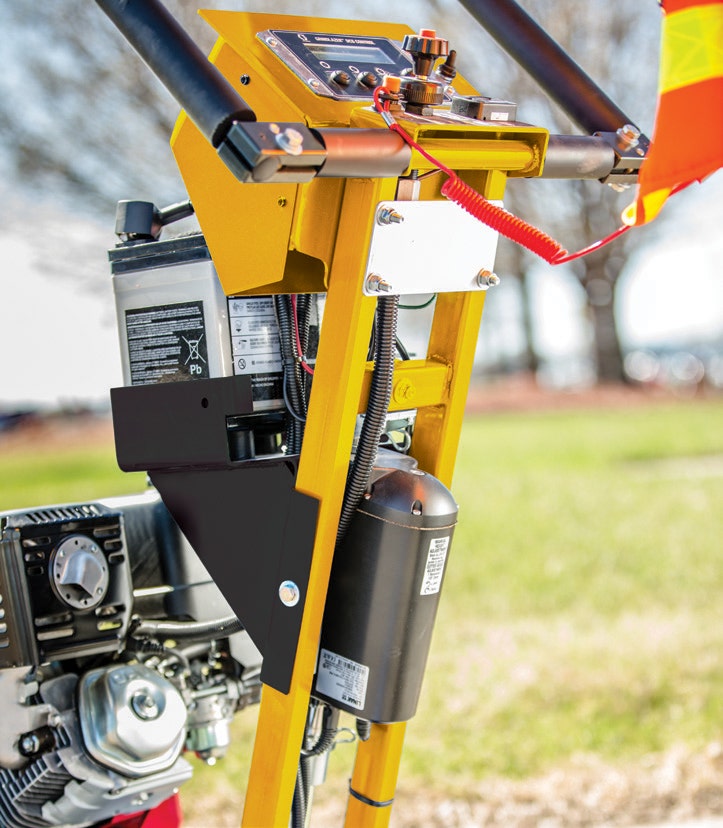

  • Linear actuator enclosed in sealed case to resist water, dust, and debris

DCS Instructions

SMITH DCS Equipment

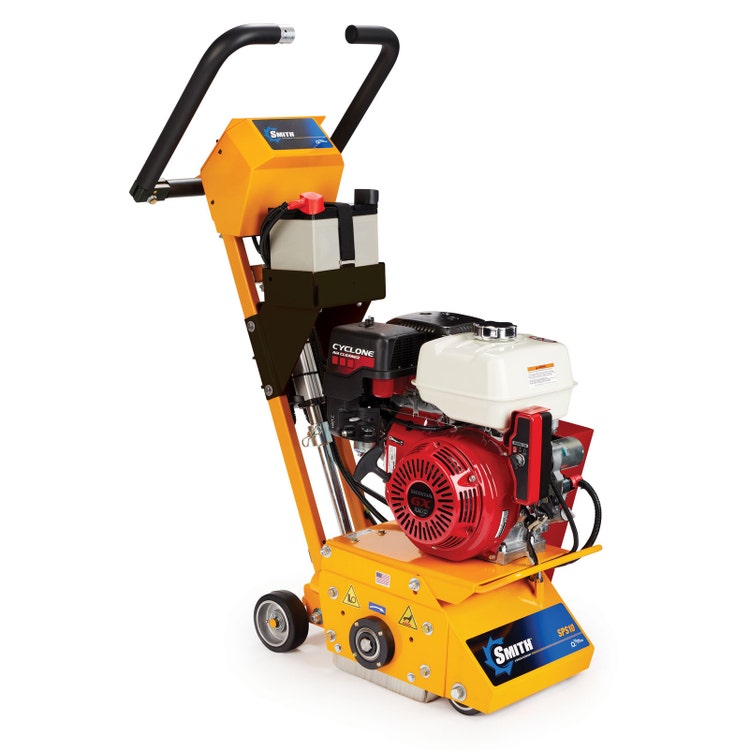

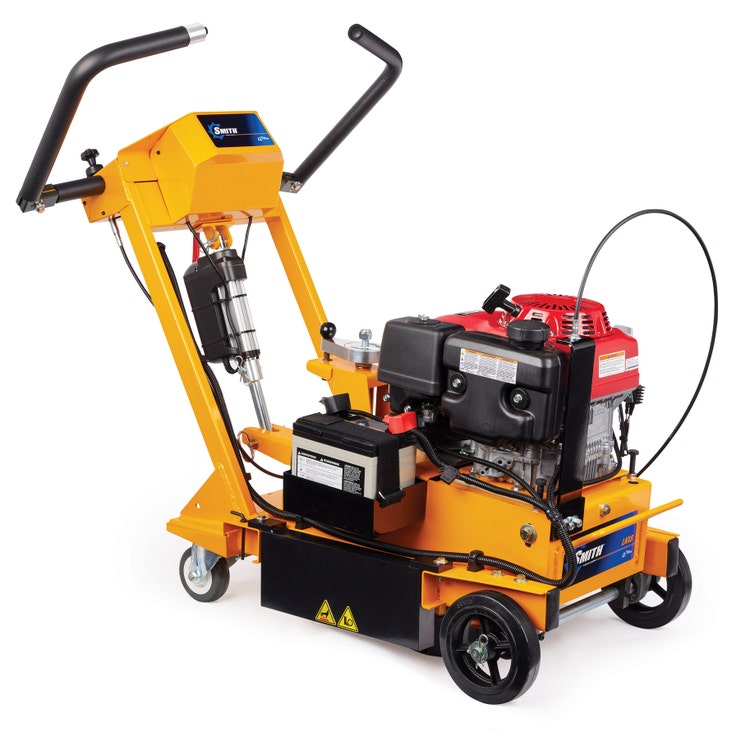

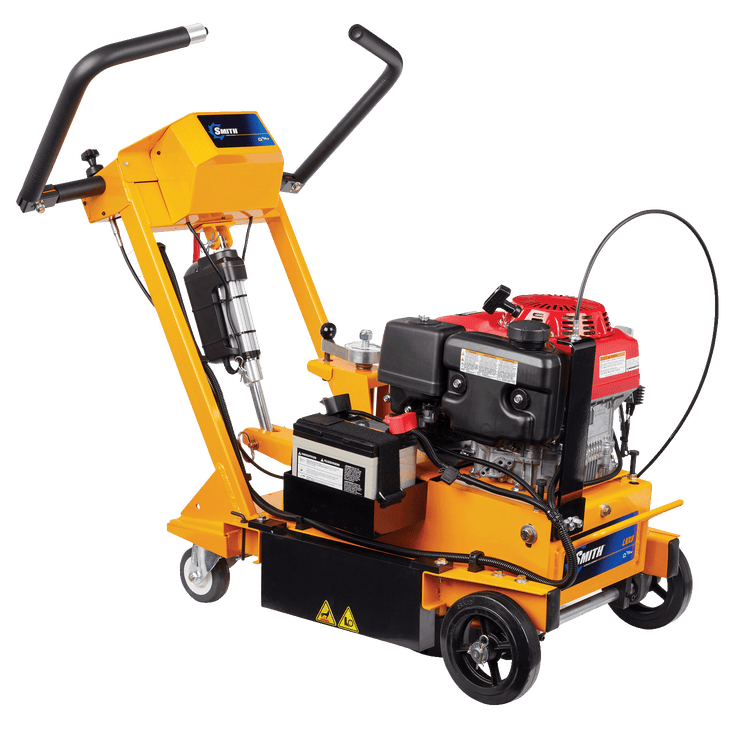

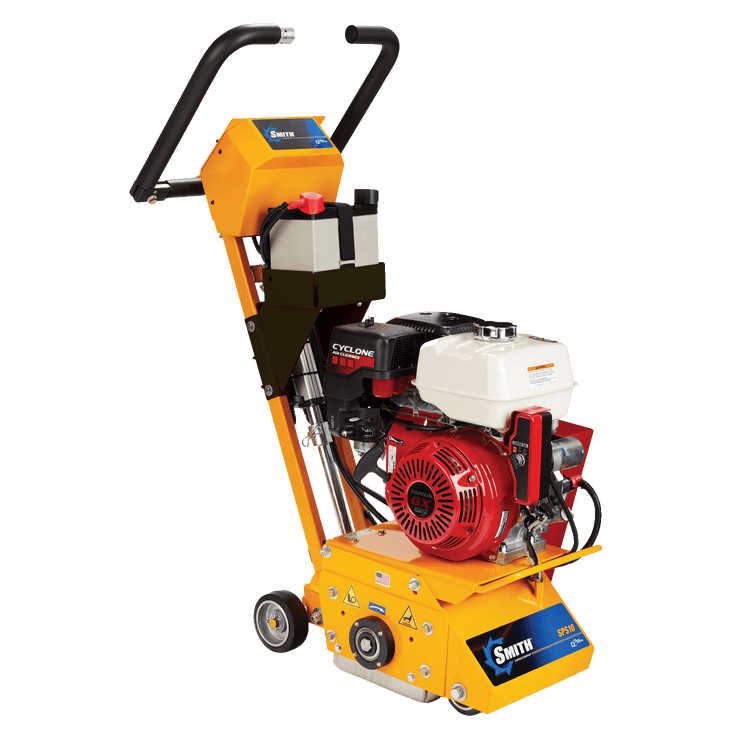

SMITH’s DCS depth Control System is available on a variety of SMITH drum and rotary scarifiers to cover a wide variety of applications.

Contact Us For More Information!
