Flail-it Drums – Smith Surface-Prep Solutions

Flail Drum Assemblies

Choose Your Machine:

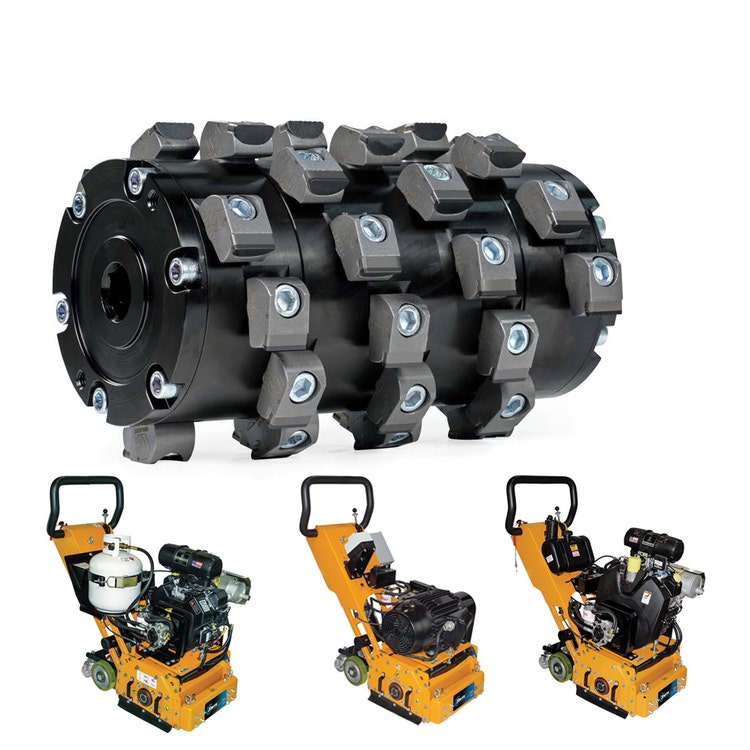

1065051.75.2128 10" Flail-it Drum

Our most popular drum. Fits the SMITH SPS10, EDCO 10″ Walk-Behind Crete-Planer®, Graco GrindLazer Pro DC1013, and other similar removers.

Perfect for all-purpose scarifying, line removal, sidewalk grinding, groove inlay and more.

Get a Quote

Get a Quote on a Drum

Your Name

Company Name

Phone

Which Drum Do You Want Quoted?

PCD (flat) PCD (nano-round) PCD (round) Flail-it Strip-it Scrape-it Mill-it Finish-it (star) Finish-it (beam) Wire Brush (drum) Plane-it (drum) Guarantee-it Shave-it Erase-it (spindle) Plane-it (spindle) Wire Brush (spindle)

Configuration?

Fine Medium Coarse Extra Coarse Custom Not Sure/Not Applicable

Type of Job?

Surface Type?

Asphalt Concrete Both

By When Do You Need It?

Street Address

City

State/Province

Postal Code

How Did You Hear About SMITH?

Google Search Bing Search Yahoo Search Google Ad World of Concrete ATSSA World of Asphalt National Pavement Expo World Dairy Expo ARA The Rental Show APWA Concrete Palooza Concrete Contractor Magazine Concrete Contractor email Pavement Maintenance Magazine Pavement Maintenance email Dairy Star Facebook LinkedIn Twitter Existing Customer Other

Message

CF2128 Flail Cutter

Outer Diameter – 2.30″ (58.42mm)
Inner Diameter– 0.79″ (20mm)
Width – 0.24″ (6mm)
Weight – 0.19 lbs (0.09 kg)
Materials – SAE steel, tungsten carbide
Tip Shape – Cylindrical
Number of Points/Edges – 8
Shaft Size – 12mm, 14mm, 20mm, 9/16″, 5/8″, 3/4″

Common Patterns:

1065051.75.2128.10F

10" flail drum in FINE pattern.
SURFACE PROFILE: SP4 – SP6

1065051.75.2128.10M

10" flail drum in MEDIUM pattern.
SURFACE PROFILE: SP5 – SP7

1065051.75.2128.10C

10" flail drum in COARSE pattern.
SURFACE PROFILE: SP7 – SP9

Custom patterns and cut widths from 2″ to 10″ available

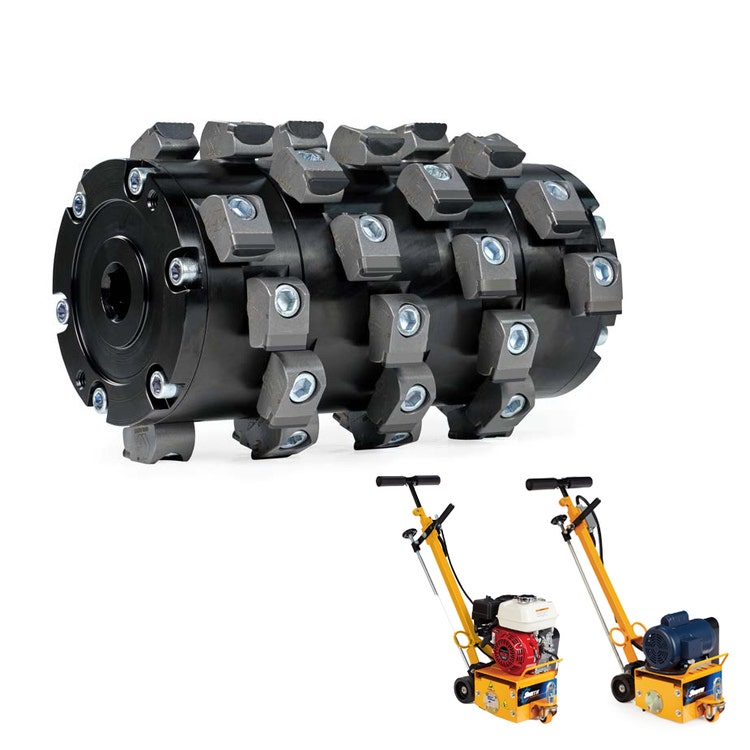

5502.6.1519 2" Flail-it Drum

Fits the SMITH FS050 and other similar removers. For edging, light-duty scarifying, marking and paint removal, graffiti removal and more.

Get a Quote

Get a Quote on a Drum

Your Name

Company Name

Phone

Which Drum Do You Want Quoted?

Configuration?

Fine Medium Coarse Extra Coarse Custom Not Sure/Not Applicable

Type of Job?

Surface Type?

Asphalt Concrete Both

By When Do You Need It?

Street Address

City

State/Province

Postal Code

How Did You Hear About SMITH?

Message

CF1519 Flail Cutter

Outer Diameter – 1.40″ (35.56mm)
Inner Diameter– 0.47″ (11.9mm)
Width – 0.24″ (6mm)
Weight – 0.07 lbs (0.05 kg)
Materials – SAE steel, tungsten carbide
Tip Shape – Cylindrical
Number of Points/Edges – 8
Shaft Size – 10mm, 7/16″

Common Patterns:

5502.6.1519.2F

2" flail drum in FINE pattern.
SURFACE PROFILE: SP4 – SP6

5502.6.1519.2M

2" flail drum in MEDIUM pattern.
SURFACE PROFILE: SP5 – SP7

5502.6.1519.2C

2" flail drum in COARSE pattern.
SURFACE PROFILE: SP7 – SP9

FS150.1519 7" Flail-it Drum

Fits the SMITH FS150 and other similar removers. For edging, light-duty scarifying, marking and paint removal, graffiti removal and more.

Get a Quote

Get a Quote on a Drum

Your Name

Company Name

Phone

Which Drum Do You Want Quoted?

Configuration?

Fine Medium Coarse Extra Coarse Custom Not Sure/Not Applicable

Type of Job?

Surface Type?

Asphalt Concrete Both

By When Do You Need It?

Street Address

City

State/Province

Postal Code

How Did You Hear About SMITH?

Message

Common Patterns:

FS150.1519.M

7" flail drum in MEDIUM pattern.
SURFACE PROFILE: SP5 – SP7

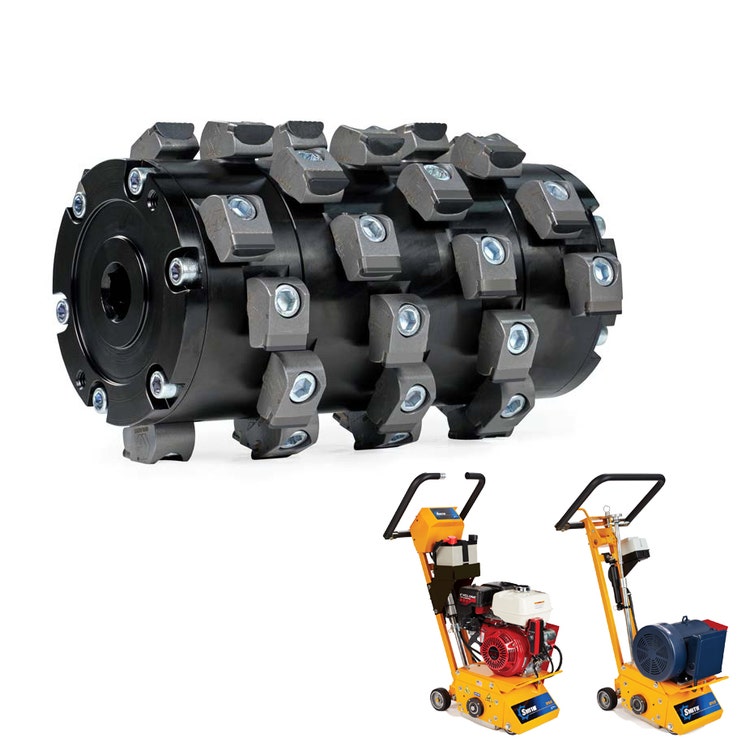

504.4021.5.2516 8" Flail-it Drum

Fits the SMITH FS200, SMITH FS209, Graco Standard DC87, Graco Standard DC89, and other similar removers. For light-duty scarifying, line removal, sidewalk grinding, and more.

Get a Quote

Get a Quote on a Drum

Your Name

Company Name

Phone

Which Drum Do You Want Quoted?

Configuration?

Fine Medium Coarse Extra Coarse Custom Not Sure/Not Applicable

Type of Job?

Surface Type?

Asphalt Concrete Both

By When Do You Need It?

Street Address

City

State/Province

Postal Code

How Did You Hear About SMITH?

Message

CF2516 Flail Cutter

Outer Diameter – 1.85″ (46.9mm)
Inner Diameter– 0.61″ (15.4mm)
Width – 0.24″ (6mm)
Weight – 0.11 lbs (0.05 kg)
Materials – SAE steel, tungsten carbide
Tip Shape – Cylindrical
Number of Points/Edges – 6
Shaft Size – 10mm, 12mm, 7/16″, 1/28″, 9/16″

Common Patterns:

504.4021.5.2516.8F

8" flail drum in FINE pattern.
SURFACE PROFILE: SP4 – SP6

504.4021.5.2516.8M

8" flail drum in MEDIUM pattern.
SURFACE PROFILE: SP5 – SP7

504.4021.5.2516.8C

8" flail drum in COARSE pattern.
SURFACE PROFILE: SP7 – SP9

Custom patterns and cut widths from 2″ to 8″ available

65050.2516 8" Flail-it Drum

Fits the SMITH SPS8, Edco CPM8® and other similar removers. For medium-duty scarifying, line removal, sidewalk grinding, and more.

Get a Quote

Get a Quote on a Drum

Your Name

Company Name

Phone

Which Drum Do You Want Quoted?

Configuration?

Fine Medium Coarse Extra Coarse Custom Not Sure/Not Applicable

Type of Job?

Surface Type?

Asphalt Concrete Both

By When Do You Need It?

Street Address

City

State/Province

Postal Code

How Did You Hear About SMITH?

Message

CF2516 Flail Cutter

Outer Diameter – 1.85″ (46.9mm)
Inner Diameter– 0.61″ (15.4mm)
Width – 0.25″ (6.35mm)
Weight – 0.11 lbs (0.05 kg)
Materials – SAE steel, tungsten carbide
Tip Shape – Cylindrical
Number of Points/Edges – 6
Shaft Size – 10mm, 12mm, 7/16″, 1/28″, 9/16″
5

Common Patterns:

65050.2516.8F

8" flail drum, FINE pattern.
SURFACE PROFILE:
SP4 – SP6

65050.2516.8M

8" flail drum, MEDIUM.
SURFACE PROFILE:
SP5 – SP7

65050.2516.8C

8" flail drum, COARSE.
SURFACE PROFILE:
SP6 – SP8

65050.2516.8XC

8" flail drum, EXTRA COARSE.
SURFACE PROFILE:
SP8 – SP10

Custom patterns and cut widths from 2″ to 8″ available

FS350.25.3158.15 15" Flail-it Drum

Fits the SMITH FS351, SMITH FS350, SMITH 390, SMITH 391 and other similar removers. For heavy-duty scarifying, line removal, sidewalk grinding, and more.

Get a Quote

Get a Quote on a Drum

Your Name

Company Name

Phone

Which Drum Do You Want Quoted?

Configuration?

Fine Medium Coarse Extra Coarse Custom Not Sure/Not Applicable

Type of Job?

Surface Type?

Asphalt Concrete Both

By When Do You Need It?

Street Address

City

State/Province

Postal Code

How Did You Hear About SMITH?

Message

CF3158 Flail Cutter

Outer Diameter – 3.26″ (82.8mm)
Inner Diameter– 1.18″ (29.9mm)
Width – 0.32″ (8.1mm)
Weight – 0.48 lbs (0.22 kg)
Materials – SAE steel, tungsten carbide
Tip Shape – Cylindrical
Number of Points/Edges – 8
Shaft Size – 20mm, 22mm, 25mm, 7/8″, 15/16″, 1.00″

Common Patterns:

FS350.25.3158.15F

15" flail drum, FINE pattern.
SURFACE PROFILE:
SP4 – SP6

FS350.25.3158.15M

15" flail drum, MEDIUM pattern.
SURFACE PROFILE:
SP5 – SP7

FS350.25.3158.15C

15" flail drum, COARSE.
SURFACE PROFILE:
SP7 – SP9

Custom patterns and cut widths from 2″ to 15″ available
